Cold Room Panels – Floor
Cold room floor panels provides maximum isolation for the ground leakages of storage cooling. Tailored for diverse industries, these panels deliver exceptional insulation, durability and strength, creating a resilient foundation for cold storage environments. Whether in pharmaceuticals, food storage, or hotels, Esad Panel cold storage floor panels offer a reliable, durable and energy-efficient solution, optimizing the preservation conditions of your products.
- Ground Isolation
- Stainless
- Freeze-thaw resistance
- Non-corrosive
- Non-Slip
May interest you: Hermetic Cooling Units
Product Description
Perfect combination is achieved by interlocking systems. The fact error-free is the result of a production with accurate workmanship.
ESADPANEL® provides different thicknesses for different conditions of the goods and different temperatures of the needs of world.
Camlock® systems that maximize sealing thanks to their interlocking lock systems in male and female form.
Fire Rate: Euroclass B-s3, d0 according to EN 13501-1, Polyurethane (PUR) foam. Polyisocyanurate (PIR) B-s2, d0 class is optional.
Indispensable in isolation with optimum high density provides maximum isolation.
Provides maximum durability with optimum thickness of the surface materials.
Comes with mounting apparts and makes it easier installation with camlocks for cold room.
Special hygienic materials for food environments, thus they are safe products for health.
FLOOR TYPES
PATTERN
INSTALLATION
CAPACITY
Panel width is produced as 1110mm as standard. There is an additional joint margin of 20mm. Panel widths can be specially produced from 310mm to 1110mm upon request.
Cold Room Panels – Floor Video

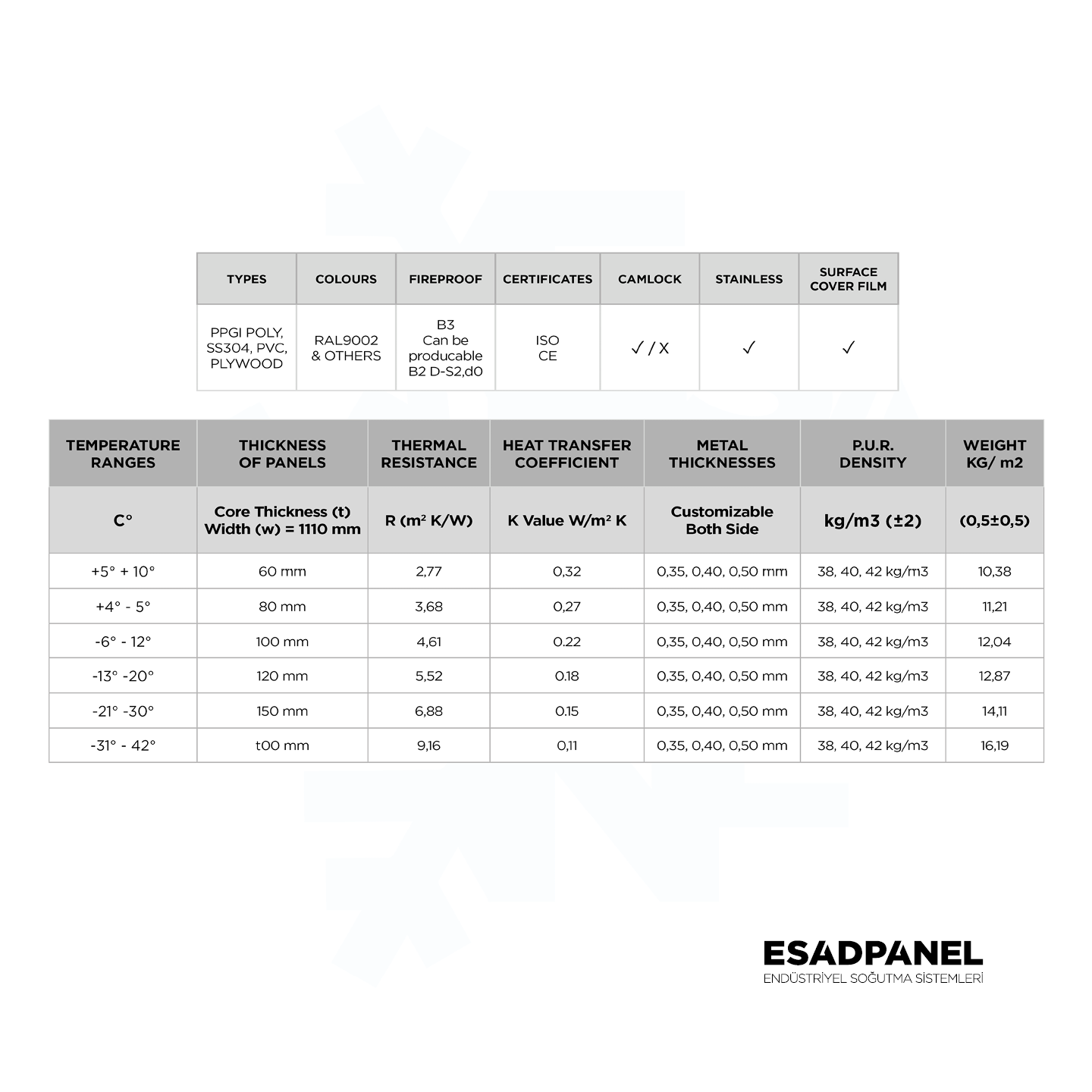

Additional Information
| Origin | Türkiye, Sivas. |
|---|---|
| Width | 1110 mm – 1,11 cm |
| Max Length | 13000 mm – 13,0 m |
| Thicknesses | 50, 60, 80, 100, 120, 150, 200 mm |
| Sheets | P.P.G.I. (POLY), Cr-Ni (SS304), PVC, Plywood. |
| Sheet Thicknesses | Wall/Ceiling: 0,35, 0,40, 0,50, 0,60 mm – Floor: 8,0, 9,0 10,0 cm |
| Isolation Material | PUR – Polyurethane |
| Density | 38 (±2) kg/m3, 40 (±2) kg/m3, 42 (±2) kg/m3 |
| Color Codes | POLY: RAL9002 – PVC: ARB1 – CRNI: SS304 – PLYWOOD: BROWN/BLACK |
| Pattern | V Ribbed, Flat, Hexa, Floor Type (Non-Slip) |
| Fireproof | PUR: B+s3+d0 , B+s2+d0 |
| Camlock | Camlock – Without Camlock |
